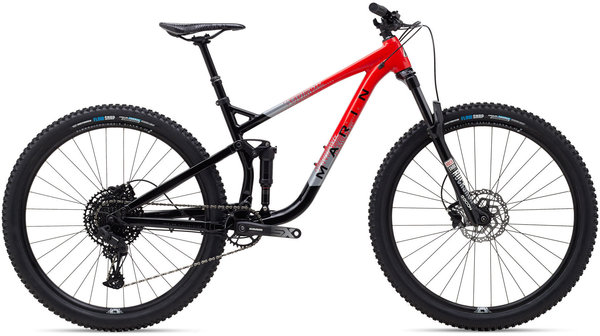

The Rift Zone is our most speed-oriented MultiTrac bike, created for the rider looking for the speed and rollover capabilities of 29" wheels in a trail-capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
SERIES 3 ALUMINUM FRAME
The Rift Zone 2 features a Series 3 aluminum frame with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.
MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long-travel system on large drops and rocks.
All Rift Zone models sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a cleaner and rattle-free cable set up.
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
|Frame||Series 3 6061 Aluminum Frame, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs|
|Fork||RockShox Recon RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset|
|Headset||FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"|
|Rear Shock||RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, 22.2mm x M8 Hardware|
|Rims/Wheels||Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible|
Front: Forged Alloy, 110x15mm, Centerlock Disc, 32H
Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body
|Spokes||14g Black Stainless Steel|
|Tires||Vee Tire Co, Flow Snap, 29x2.35, Tackee Compound, 72 TPI, Tubeless Compatible|
|Crankset||Sram SX Eagle, Direct Mount Narrow Wide Steel Chainring|
|Bottom Bracket||Sram Powerspline, 73mm BSA|
|Chain||Sram SX Eagle|
|Rear Derailleur||SRAM SX 12-Speed Long Cage|
|Cassette/Rear Cogs||Sram PG-1210 Eagle 11-50T|
|Shifters||SRAM SX 12-Speed|
|Handlebars||Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back|
|Tape/Grips||Marin Single Clamp Locking|
|Stem||Marin 3D Forged Alloy, 35mm|
|Brake Levers||Shimano BR-MT201 Hydraulic Disc|
|Brakes||Shimano BR-MT201 Hydraulic Disc, 180mm Rotor|
|Saddle||Marin Speed Concept|
|Seat Post||TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M & L 150mm Travel, Size XL 175mm Travel, 30.9mm|
* Subject to change without notice.
|Black Red / Small||843346103659||730109001|
|Black Red / Medium||843346103666||730109002||6974|
|Black Red / Large||843346103673||730109003||6968|
|Black Red / X-Large||843346103680||730109004||6971|
