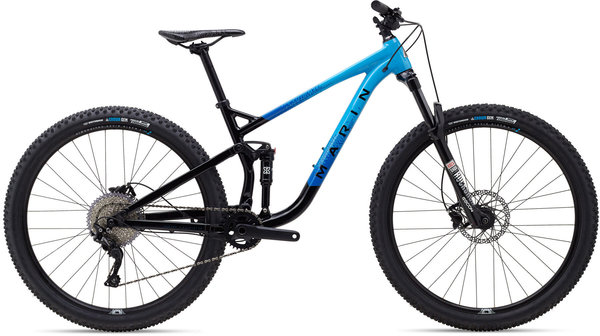

Marin Rift Zone 1

Marin Rift Zone 1
$1,599.99
Color:
Black Blue
Please select options

Details

The Rift Zone is our most speed-oriented MultiTrac bike, created for the rider looking for the speed and rollover capabilities of 29" wheels in a trail-capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

SERIES 3 ALUMINUM FRAME
The Rift Zone 1 features a Series 3 aluminum frame with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long-travel system on large drops and rocks.

INTERNAL ROUTING
All Rift Zone models sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a cleaner, and rattle-free cable set up.

Specs

Frame Series 3 6061 Aluminum Frame, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork RockShox Recon RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset
Rear Shock X-Fusion O2 Pro R, Custom Tune, 210x50mm, 25mm x M8 Hardware Top and Bottom
Rims/Wheels Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs Front: Forged Alloy, 110x15mm, 6-Bolt Disc, 32H
Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H, Standard Freehub Body
Spokes 14g Black Stainless Steel
Tires Vee Tire Crown Gem 29x2.3", Dual Control Compound, Folding Bead, Tubeless Compatible
Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide Chainring, 76mm BCD
Chainrings 32T
Bottom Bracket External Sealed Cartridge Bearings
Chain KMC X11
Rear Derailleur Shimano Deore Shadow Plus
Cassette/Rear Cogs SunRace 11-Speed, 11-46T
Shifters Micro Shift, SLM895, 11 speed
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Tape/Grips Marin Dual Density
Stem Marin 3D Forged Alloy, 45mm
Brake Levers Shimano BR-MT201 Hydraulic Disc
Brakes Front: Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
Rear: Shimano BR-MT201 Hydraulic Disc, 160mm Rotor
Saddle Marin Speed Concept
Seat Post Marin Alloy, 30.9mm
Accessories & Extras Closed 9-12 Thru-Axle QR System

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black Blue / Small 843346103611 730107001 6969
Black Blue / Medium 843346103628 730107002 6972
Black Blue / Large 843346103635 730107003 6970
Black Blue / X-Large 843346103642 730107004 6973
